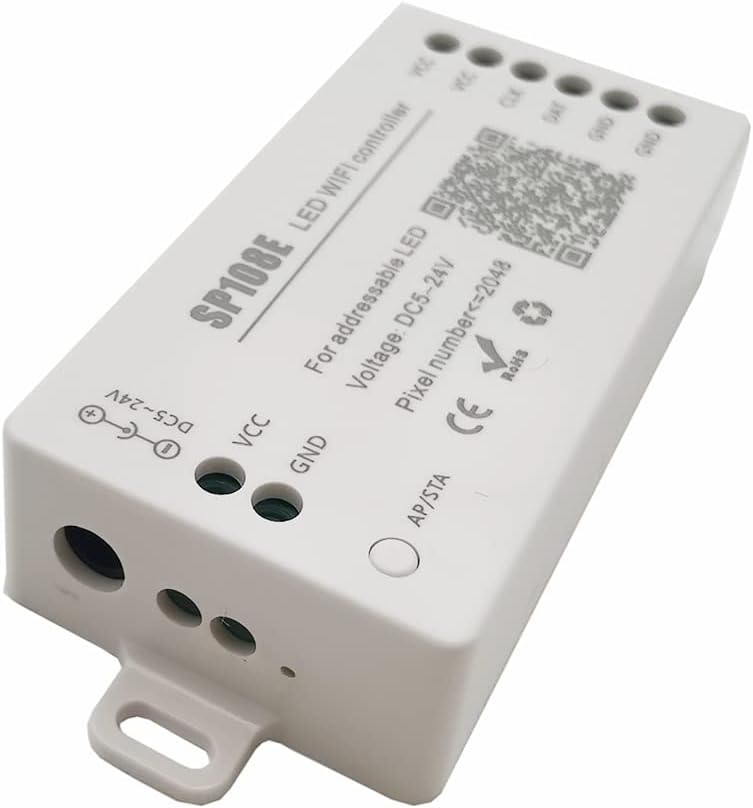

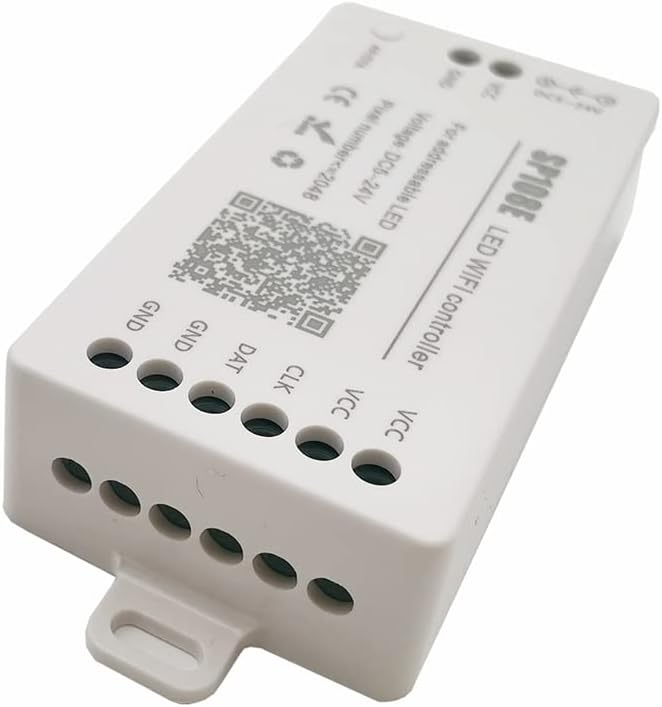

WS2812B WiFi SP108E Controller Support WS2811 WS2815 WS2801 SK6812 WS2813 SK9822 APA102C etc Almost All LED Strip Module Light iOS/Android App Control AP Mode/STA Mode (SP108E)

Specifications: Working Temperature: -20~60 Degrees Celsius Working Voltage: DC5V~24V; Working Current: 20mA~130mA; AP Mode Remote Distance: 45FT; Product Size: 85mm*45mm*22mm; Product Weight: 40g; Certificates: CE, RoHS; Package includes: 1x SP108E WiFi LED controller 1x 3pin female JST connector 1x Mini screwdriver 1x User manual (Note: power supply/mobile/controller/led strip not include!)

• WIFI Control. Support routing connection mode (AP) and LAN connection mode (STA).It only works with 2.4G WIFI network. DON’T use 5G WIFI network. IOS 10/Android 4.4 or later version.If your LED light is 5V,please use 5V power supply.
• Wide Compatibility. Support almost all the one-wire or two-wire LED driver ICs, such as WS2811,WS2812B,WS2813,WS2814,WS2815,SK6812RGBW, WS2801, SK6812RGB, LPD6803, LPD8806, APA102, TM1913,SK9822, UCS1903, SM16703, DMX512. (DO NOT control 5050RGB or RGBW led strip which has no IC )
• Rich Color Modes. 180 kinds of multi-color dynamic modes, 8 kinds of single color modes such as meteor, breathing, wave, catch-up, stack, flash, flow, static. Color, brightness and speed are adjustable.
• Capture image’s color you like.The WiFi controller features creative from-image-to-effect function. It can capture the color of image, create distinctive color effect and synchronize light color with atmosphere of your room.
• Color calibration. When the app color is inconsistent with the color of the LED strip, where green is blue and blue is green ，You can use the APP to calibrate the colors to make them consistent.6 color sequences, RGB, RBG, BRG, BGR, GRB, GBR, select one of them for calibration
