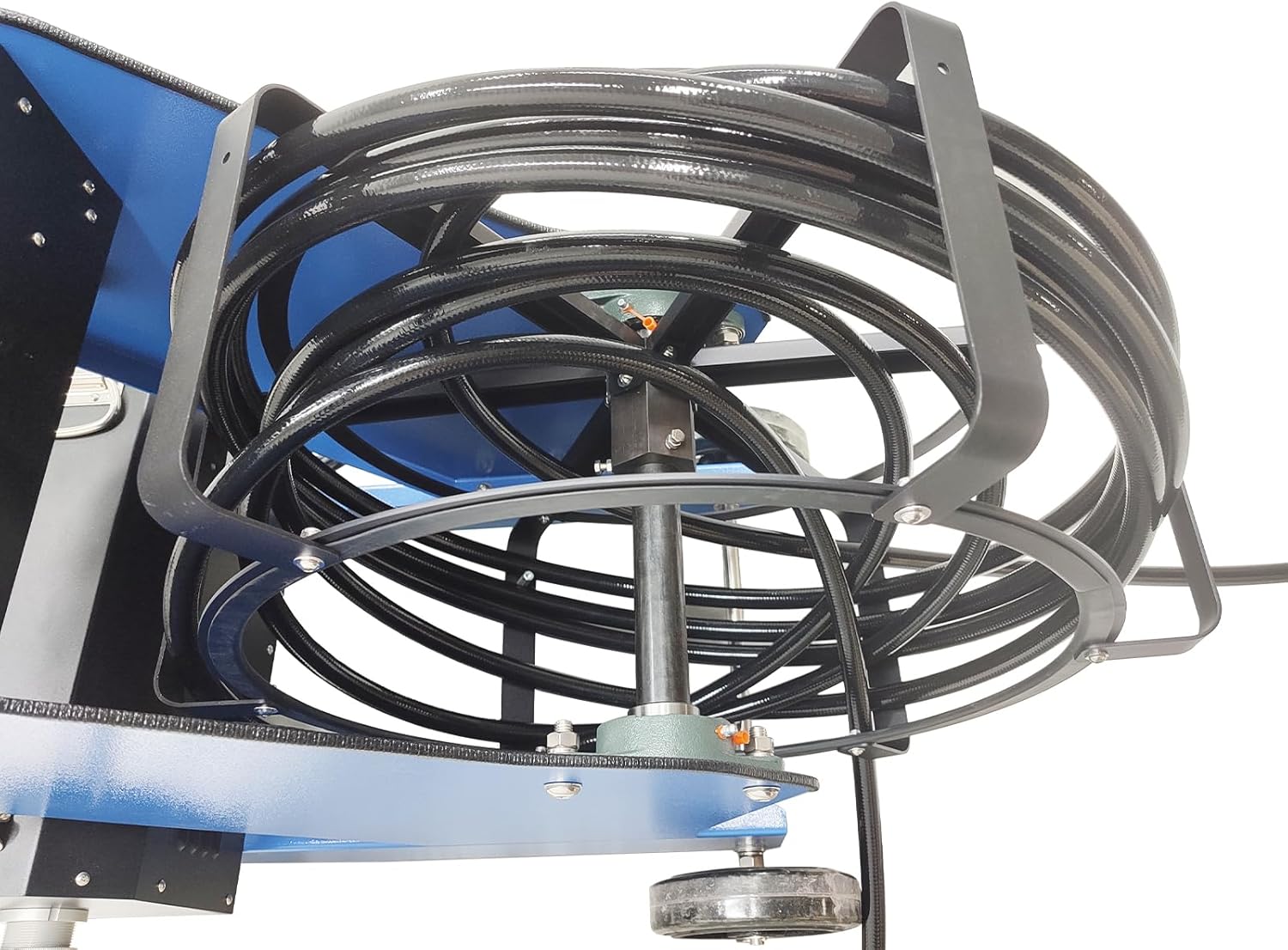

TECHTONGDA Exhaust and Grease Air Duct Cleaning Machine, 220V/110V Pipe Cleaner Machine for Kitchen Oil Fume Dirt Duct, Applicable Pipe Diameter 3.94-31.5in, Compatible with Foam Generator

Product Parameters of Main UnitVoltage: 220V/50Hz Single-phase electricity(Include a 110V transformer)Power: 1500WRotating speed: 0-1400rpmApplicable pipe diameter: 3.94-31.5inQuick connection water pipe: 65.62ft/20mFlexible shaft: 49.21ft/15mSteel wire brush: 4 pcs (11.81in, 15.75in,23.62in,31.5in)Nylon brush: 2 pcs (15.75in,23.62in)Product Parameters of Self-priming pumpSelf-priming pumpVoltage:220V/50HzPower: 750WFlow rate: 2.7m³/hAllowable medium: All kinds of cleaning solutionsOperation Method1. Pull out the flexible shaft completely, and straighten the flexible shaft as much as possible to use.2. Connect the power end of the flexible shaft to the main machine and tighten it with a nut.3. Select a cleaning brush with the size slightly smaller than the internal diameter of the pipeline to be cleaned, connect the cleaning brush to the flexible shaft and fix it with a pin to prevent it from falling off.4. Connect the main machine and the control cabinet with a data cable.5. Connect the foot switch to the pneumatic connector.6. Connect one end of the water pipe to the flexible shaft, and connect the other end of the water pipe to the faucet.7. If the machine needs to be connected with the self-priming pump, please connect the water pipe of the self-priming pump to the connector of the flexible shaft.8. Connect the PVC water pipe to the water inlet of the self-priming pump, and put the other end of the PVC water pipe into the water source. The self-priming pump needs to be filled with water when it is used for the first time.Item Number (022825): 1 x Oil Fume Pipeline Cleaning Machine

• 6 Brushes & Long Hose: Grease duct cleaning machine includes 4 steel wire brushes (11.81in, 15.75in, 23.62in, 31.5in) and 2 nylon brushes (15.75in, 23.62in), ensuring powerful stain removal for round, square, vertical and horizontal ducts from 3.94 to 31.5 inches in diameter. It also comes with a 65.62ft quick-connect water hose for long-distance reach.
• Compatible with Foam Generator: For heavy, stubborn grease, pair the machine with an optional foam generator (Model 022855). It sprays foam ahead of the brush to dissolve grease effectively, making the cleaning process more thorough and efficient.
• Portable & User-Friendly Design: Features a self-priming pump for flexible outdoor or mobile cleaning services. The compact control panel with 0-1400rpm adjustable speed and forward/reverse rotation makes operation simple and allows for cleaning hard-to-reach areas with ease.
• Safe Operation: Duct pipe cleaning machin supports both 220V and 110V (with included transformer) power sources, ensuring flexible and safe operation across different electrical setups. The 49.21ft flexible shaft enables deep cleaning.
• Versatile Cleaning System: This cleaing machine supports brush cleaning, detergent cleaning, and high-temperature water cleaning. Suitable for cleaning the oil fume pipelines in commercial kitchens, hotels, restaurants and other places. For safe operation and to prevent damage, always ensure the flexible shaft is completely stretched out before starting the machine.
