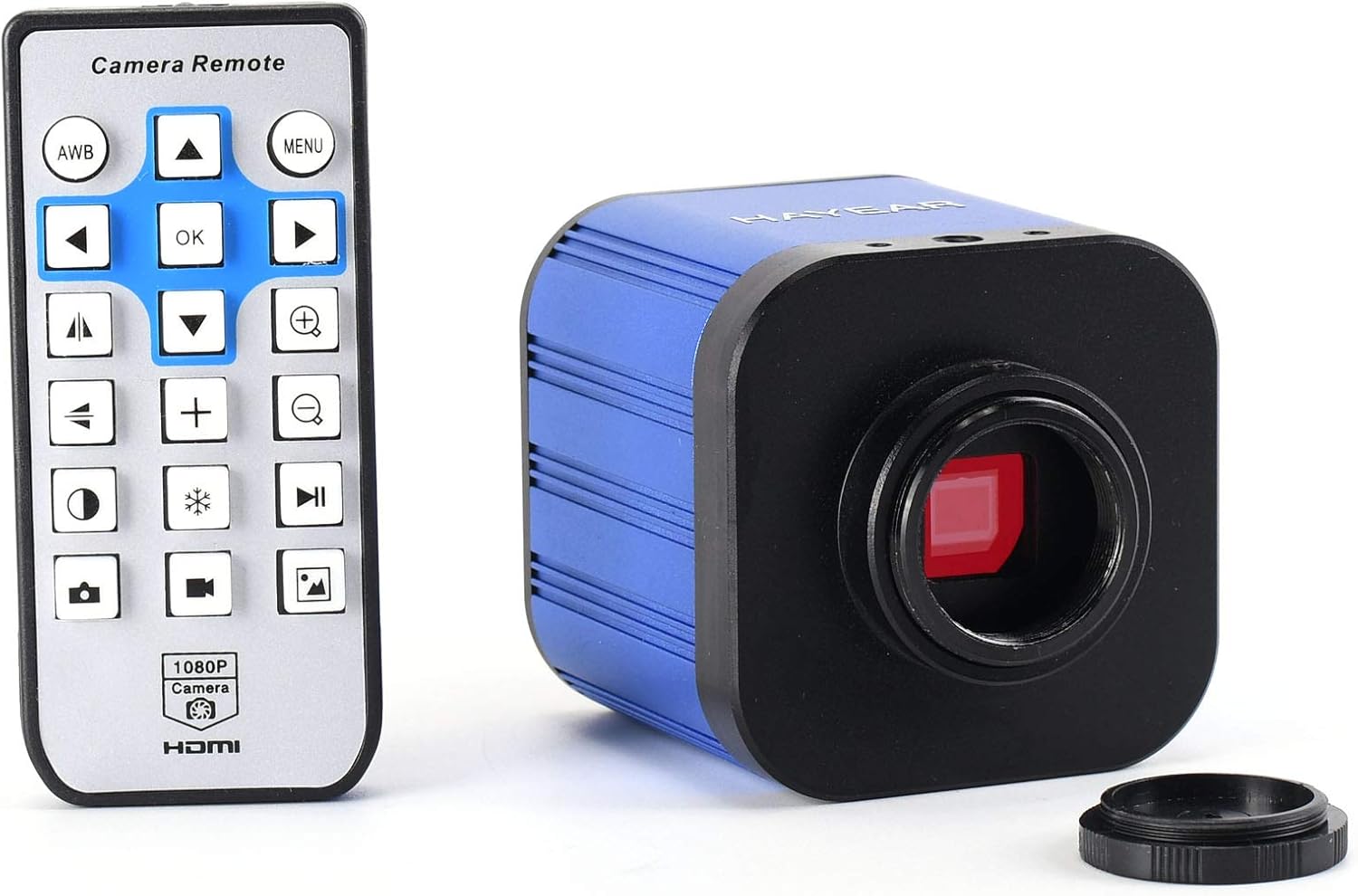

HAYEAR 4K UHD HDMI Industrial Microscope Camera Digital USB C-Mount 1080P@120fps High Speed for Precision Soldering PCB Repair Inspection
Product details
| Management number | 221293268 | Release Date | 2026/05/03 | List Price | $123.60 | Model Number | 221293268 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
ModelHY-5099 Effective Pixels:Japanese IMX CMOS 1/2.3 4K SENSOR Resolution4K/2K/1080P (HDMI ) 1080P（USB） Sensor Size1/2.3inch Pixel Size1.55 × 1.55μm Image Resolution4608*3456 Image FormatJPEG Lens TypeC / CS Frame Rate3840x2160@30FPS(4K); 1080P 120@FPS; 720P 240@FPS OutputHDMI/USB StorageTF Card, Max 128G PC SupportWindows XP/7/8/10 , PC Software with Measuring Function Image Scaling7-Fold zoom Image MeasurementSupport HAYEAR Measurement Software LanguageEN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP Size60×62×62 mm Packing Size16×10×8cm/0.5Kg Package list: 1 x microscope camera with power adapter 1 x HD hdmi cable 1 x usb cable 1 x software disk 1 x remote controller
- Japanese IMX117 Color CMOS 1/2.3 sensor; Pixel Size:1.55 × 1.55μm
- Resolution 4K/2K/1080P (HDMI ) 1080P（USB）; Image resolution: 4608*3456 (HDMI)
- High Speed 4K@60fps video record for 4:3 ratio, 4K@30fps for 16:9 ratio, 1080P@120fps via HDMI output
- Measure software for Win 7/8/10 and measurement software for Mac iOS system
- 7X digital zoom in and zoom out, support TF card memory max 256G.
| UPC | 753215417728 |
|---|---|
| Brand | HAYEAR |
| Color | Blue |
| Voltage | 12 Volts (DC) |
| Model Name | HY-5099 |
| Item Weight | 0.53 Kilograms |
| Manufacturer | HAYEAR |
| Power Source | Corded Electric |
| Light Source Type | [POSSIBLY] LED |
| Compatible Devices | Personal Computer, Television |
| Enclosure Material | aluminum |
| Real Angle Of View | 45 Degrees |
| Magnification Maximum | 7 x |
| Manufacturer Part Number | HY-5099 |
| Objective Lens Description | Achromatic |
