DIY Reciprocating Cycle Linear Actuator with DC Gear Motor 12V Stroke 10mm Adjustable 65rpm Speed Optional for DIY Design

This Linkage Mechanism is an automatic constantly reciprocating linear actuator motor, which frequency is Variable. This machine output in an axle, the run speed on axis is Non-uniform. If require speed uniform please don't bid. This machine is Non-standard manual production, the surface is rough. If require surface precise please don't bid. The speed faster, the noise louder. If require quietly, please be careful before bid. Linear motion part is consist of sliding linear ball bearing and steel axle. Axle need adds lubricating oil at regular intervals, in order to limited axle temperature less than 90 degrees, and oil wetness. Due to rotating lump is affected by gravity, the machine go and back speed is different. Warning: Speed higher than 100rpm has very small force, the load larger then maximum force will break gearbox. Clear all barriers before operating the motor, even use your hand holding the shaft may break the motor Please do accord to our advices for avoid unnecessary trouble!!!! Many customers have already broken the gears inside without proper operation, it causes much trouble.

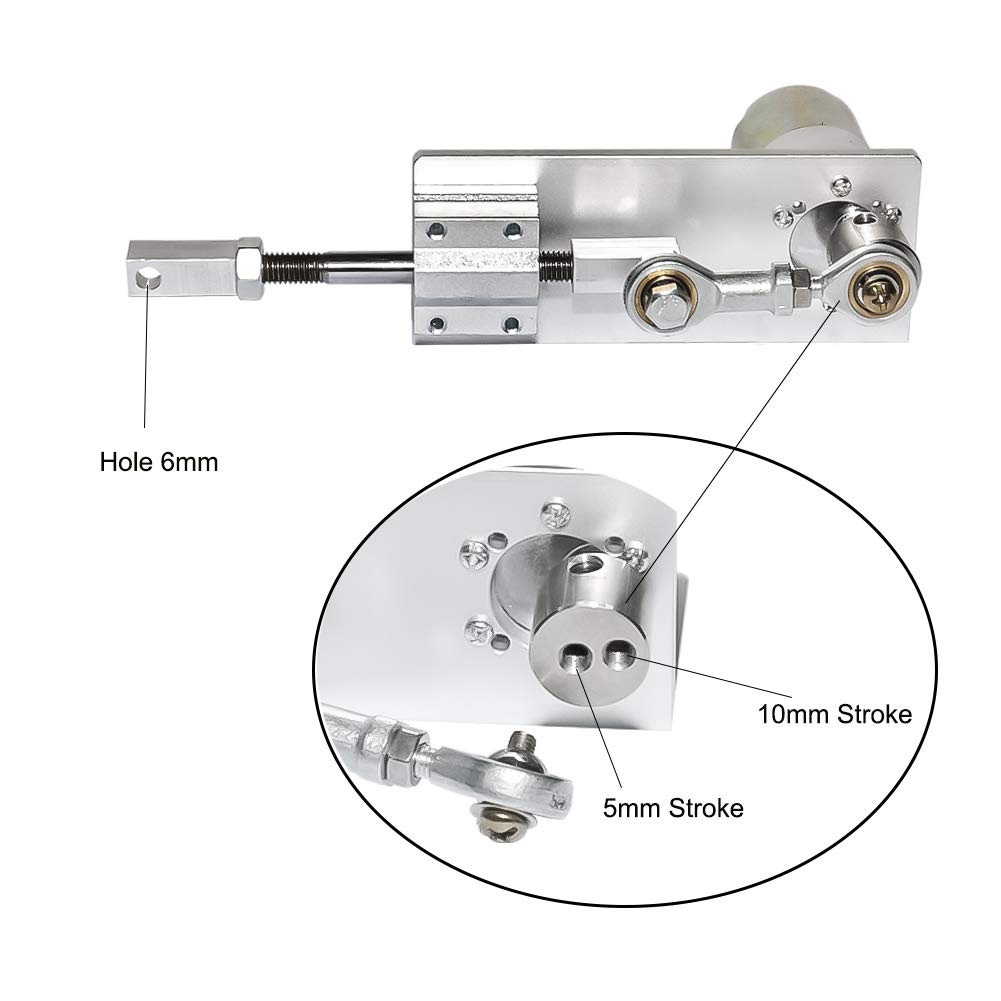

• ✔Model Number: DIY-37GB330; Rated Voltage: DC12V; Stroke(MM): 5/10mm; Frequency(MIN): 65RPM;
• ✔Rated torque: 1.75kg.cm; CAD Dimension reference picture; Reversible Working: CW/CCW;
• ✔Please leave us message which Stroke you need! If there is no message, we will send model 10mm by default;
• ✔Application:Shale shaker, Vibrating screen, Incense machine ,Squirt machine, Spraying Machine, Pellet machine, Particle-making Experiment;
• ✔Package Listing Includes: 1pcs x DIY Reciprocating Actuator + 1pcs DC Gear Motor.
