Automotive Strut Spring Compressor Machine - 5511LBS Cylinder Compression Force, 1.7"-2.2" Shock Absorber Strut Diameter, Hydraulic Compressor Removing Tool for Heavy-duty commercial use

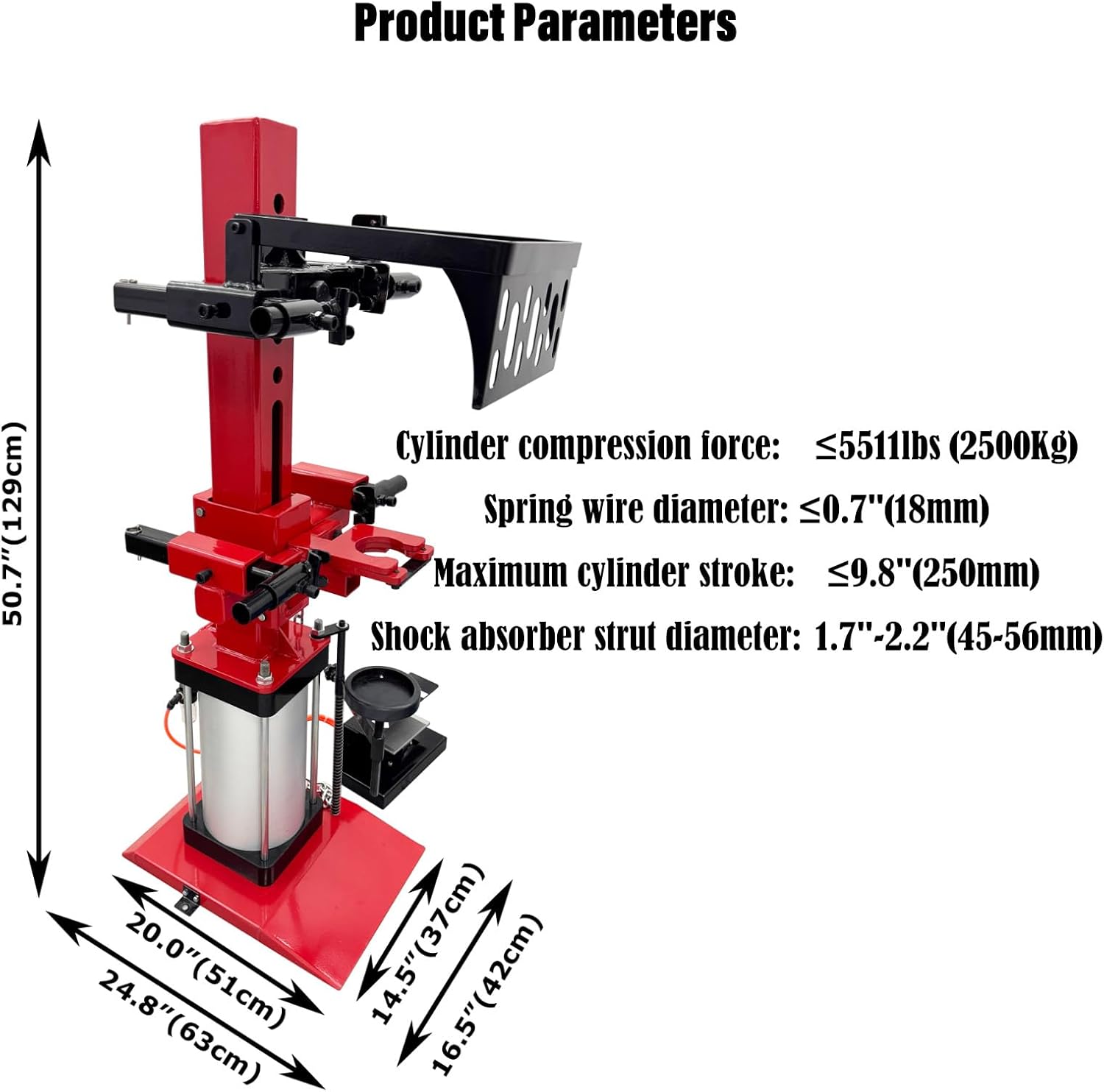

Product Overview Applicable to strut-type shock spring disassembly/assembly for sedans, SUVs, vans, pickup trucks, and modified vehicles. It features strong versatility, simple operation, and safe reliability. The column uses 100×100mm seamless steel tubing with 8mm wall thickness, equipped with a Φ200×250mm cylinder and other pneumatic components, using compressed gas as power. Only one operator is needed to easily and quickly disassemble/reassemble shock absorbers. This product offers two operation modes, allowing users to select the appropriate method based on the shock absorber's shape and size. Multiple safety protections enable more controlled disassembly/assembly. Product Specification Cylinder compression force: ≤5511lbs (2500Kg) Spring wire diameter: ≤0.7"(18mm) Maximum cylinder stroke: ≤9.8"(250mm) Shock absorber strut diameter: 1.7"-2.2"(45-56mm) Package size: 23.6"*20.5"*57.8" (60cm*52cm*147cm) Net weight / Gross weight: 169.7lbs(77kg) / 229.2lbs(104kg)

• 【Parameters】Cylinder compression force: ≤5511lbs (2500Kg), Spring wire diameter: ≤0.7"(18mm), Maximum cylinder stroke: ≤9.8"(250mm), Shock absorber strut diameter: 1.7"-2.2"(45-56mm)
• It features strong versatility, simple operation, and safe reliability. The column uses 100×100mm seamless steel tubing with 8mm wall thickness, equipped with a Φ200×250mm cylinder and other pneumatic components, using compressed gas as power.

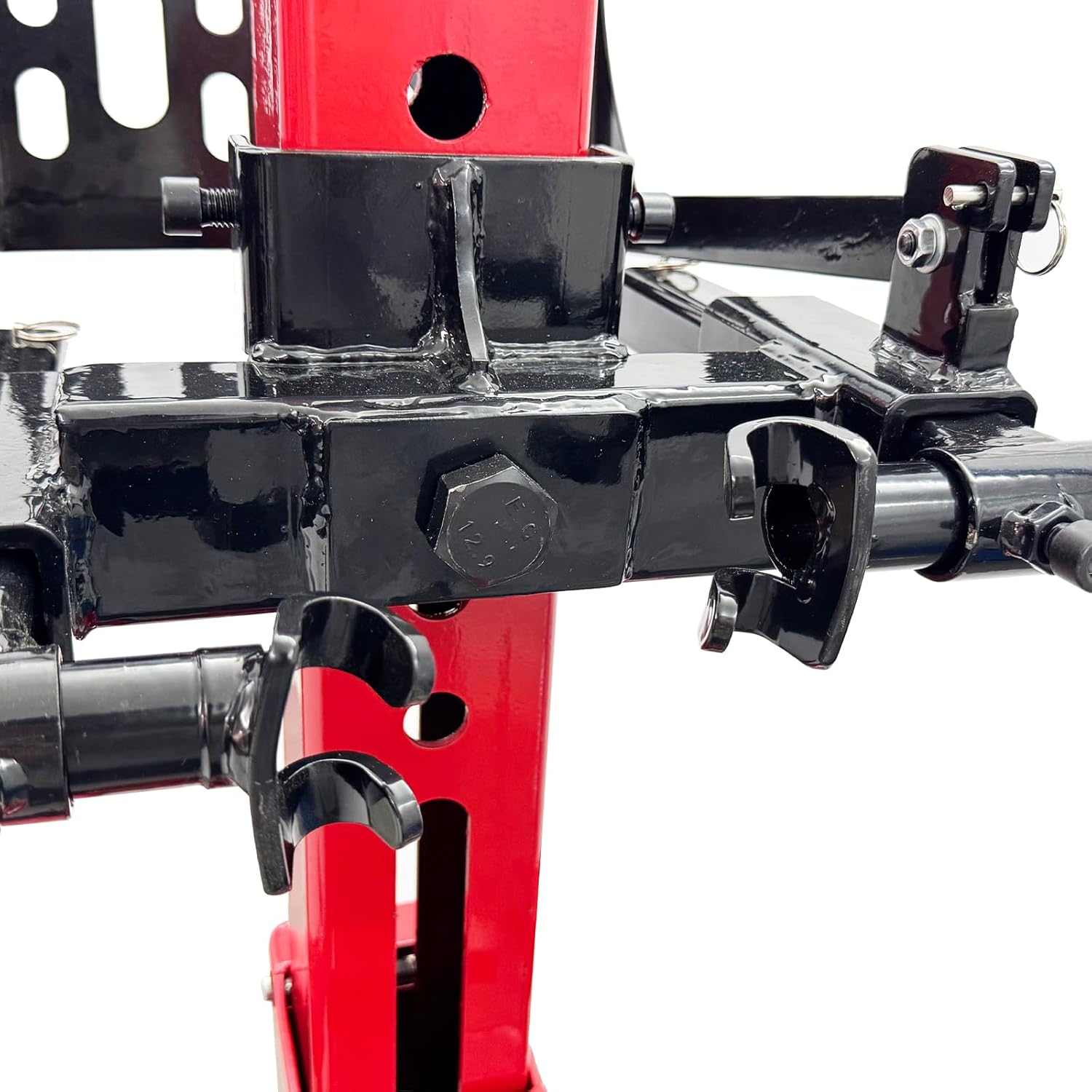

• With a stable locking mechanism, this strut and spring compressor securely holds the coil spring in place until the discharge pedal is pressed, minimizing the risk of sudden movements. safety chain ensures added security by preventing the springs from popping out.
• The stable base provides a reliable foundation for smooth compression. This auto strut spring compressor tool can be securely anchor to the floor with two pre-drilled holes on the base for increased stability or transported around the workspace for optimal mobility.
• The shock spring disassembler is suitable for strut-type shock spring removal/installation on sedans, SUVs, vans, pickup trucks, etc.This machine features powerful performance and comprehensive functions, capable of handling various heavy duty off-road shock assemblies. A single operator can easily perform shock absorber servicing (requires air connection).
• Note: Please use with your own air pump or air compressor (not included)
