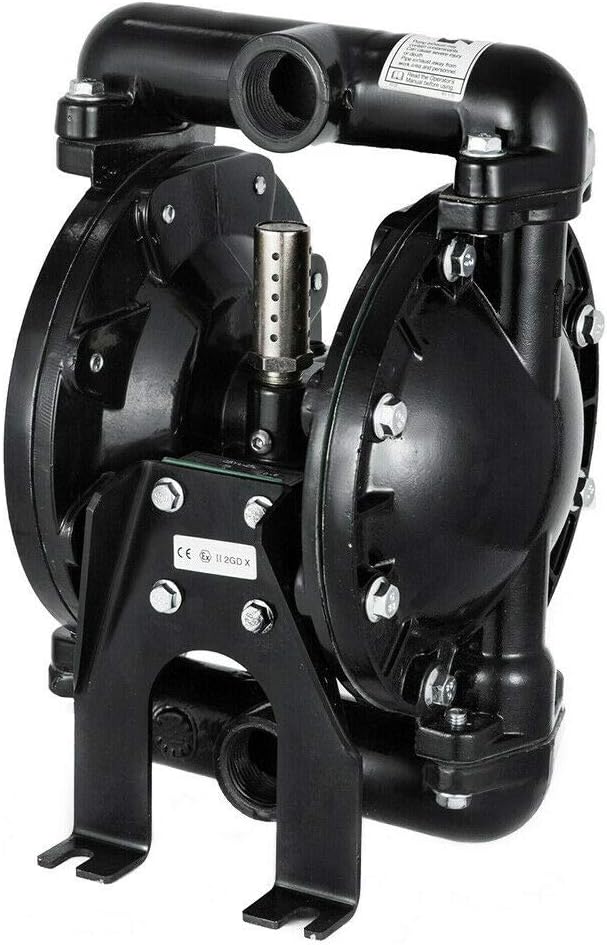

Air-Operated Double Diaphragm Pump 1 Inch Inlet & Outlet, Heavy Duty Pneumatic Diaphragm Transfer Pump for Diesel, Grease, Kerosene and Oil 35GPM 120PSI 1/2 Inch Air Inlet

Working PrincipleIn the pump two symmetrical working chamber each equipped with a diaphragm, the center link will be integrated into one.Compressed air from the pump inlet into the valve, through the valve body to introduce compressed air into one of the chamber to promote movement of the diaphragm chamber, while the other chamber gas emissions. Once the end of the stroke is reached, the gas distribution mechanism automatically introduces compressed air into the other working chamber to push the diaphragm in the opposite direction so that the two diaphragms move back and forth in unison.FeaturesBrand new with top qualityAir-operated double diaphragm pumpWith 1 inch inlet and outlet1/2 Inch air inlet1/8 Inch max diameter suspended solidsPerfect for use with waterIdeal for use with low viscosity petroleum fluidsSolid constructionSpecificationsProduct: Diaphragm pumpType: Double diaphragmOperation Type: Air-operatedModel: QBY4-25LBody Material: AluminumInlet Port: 1 inch (25 mm)Outlet Port: 1 inch (25 mm)Air Inlet Size: NPT 1/2 inch (12.7 mm)Average Air Consumption: 38 CFMMax Flow Rate: 9 m3/h (35 GPM)Suction: 0-5 m (0-16.4 ft)Max Suspended Solids: 3 mm (1/8 inch)Max Head: 84 m (275.59 ft)Max PSI: 120 PSIMax Temp.: 150 ℉Self-Priming Dry: 3 m (10 ft)Self-Priming Wet: 4.6 m (15 ft)Manifold Connection: SingleValve Type: BallBall Material: AcetalCheck Seat Material: PolypropyleneDiaphragm Material: NitrilePackage Size: 35 x 26 x 23 cm (13.78 x 10.24 x 9.06 inch)Gross Weight: 9.86 kg (21.74 lbs)Package Includes1 x Air-Operated Double Diaphragm Pump1 x Product Manual

• 【Wide Applications】- Diaphragm pump is a positive displacement pump that uses a combination of the reciprocating action of a rubber, thermoplastic or teflon diaphragm and suitable valves on either side of the diaphragm (check valve, butterfly valves, flap valves, or any other form shut-off valves) to pump a fluid. Perfect for use with water. Ideal for use with low viscosity petroleum fluids such as diesel, kerosene, motor oil and waste oil. 【Note】Can not used for corrosive liquid.
• 【Main Parameters 1】- Item Name: Diaphragm pump; Type: Double diaphragm; Operation Type: Air-operated; Model: QBY4-25L; Body Material: Aluminum; Inlet Port: 1 inch (25 mm); Outlet Port: 1 inch (25 mm); Air Inlet Size: NPT 1/2 inch (12.7 mm); Average Air Consumption: 38 CFM; Max Flow Rate: 9 m3/h (35 GPM); Suction: 0-5 m (0-16.4 ft); Max Suspended Solids: 3 mm (1/8 inch)
• 【Main Parameters 2】- Max Head: 84 m (275.59 ft); Max PSI: 120 PSI; Max Temp.: 150 ℉; Self-Priming Dry: 3 m (10 ft); Self-Priming; Wet: 4.6 m (15 ft); Manifold Connection: Single; Valve Type: Ball; Ball Material: Acetal; Check Seat Material: Polypropylene; Diaphragm Material: Nitrile; Package Size: 35 x 26 x 23 cm (13.78 x 10.24 x 9.06 inch); Gross Weight: 9.86 kg (21.74 lbs)
• 【Great Performance】- VONZOER diaphragm pump is featured with solid construction, strong and durable. 35 GPM air-operated double diaphragm pump with 1 inch inlet and outlet. Max PSI is up to 120 PSI, this powerful double diaphragm pump QBY4-25L is capable of pumping up to 35 gallons/min at temperatures up to 150 degrees F.
• 【Avant-garde Design】- Exquisite appearance, compact structure, easy to operate and carry, made of high quality material, strong and durable, ensures long service time.
