0-9999 Mm Portable Digital Ultrasonic Flaw Detector, Metal Weld Nondestructive Testing Instrument, with 1 Straight & Angle Probe, for Internal Crack Detection

Welcome to my shop~ Product Parameters: Product Name: Portable digital ultrasonic flaw detector Test Range: (0-9999) mm Operating Frequency: (0.2-20) MHz Sound Velocity Range: (1000-15000) m/s Dynamic Range: ≥36 dB Vertical Linearity Error: ≤2.5% Horizontal Linearity Error: ≤0.1% Resolution: >40 dB (5P14) Sensitivity Margin: >65 dB (200 mm deep, Ø2 flat-bottom hole) Digital Rejection: (0-80)% without affecting linearity or gain Electrical Noise Level: ≤8% Probe Type: Straight, Material, Dual Element, Penetration Gates: Incoming/Outgoing; Single/Dual Gate Reading Pulse Amplitude: Selectable: Low (300V), Medium (500V), or High (700V) Pulse Width: 0.1-0.5 μs Continuously adjustable within the range and frequency, compatible with probes of different frequencies. Probe damping: 100Ω, 200Ω, and 400Ω available. Hardware real-time sampling: High-resolution 10-bit AD converter with a sampling rate of 160MHz, ensuring high waveform fidelity. Detection modes: Positive half-wave, negative half-wave, full-wave, and RF detection. Filter frequency band: (0.2-20) MHz, automatically matches probe frequency, no manual configuration required Data storage: 100 detection parameter channels, 1000 frames of detection echo signals and parameters Communication interface: USB 2.0 high-speed communication interface Power supply: 9V DC; lithium battery, continuous operation for over 10 hours Dimensions: 263 x 170 x 61 mm Weight: 5.2 kg Ambient temperature and humidity: (-10-50)°C, (20-95)% RH Packing list: Portable digital ultrasonic flaw detector*1 Straight probe*1 Angle probe*1 Support columns*2 Probe connection cable*1 Power adapter*1 Power cord*1 Instrument case*1 USB communication cable*1

• 1. High-precision ultrasonic technology accurately detects weld cracks and defects.

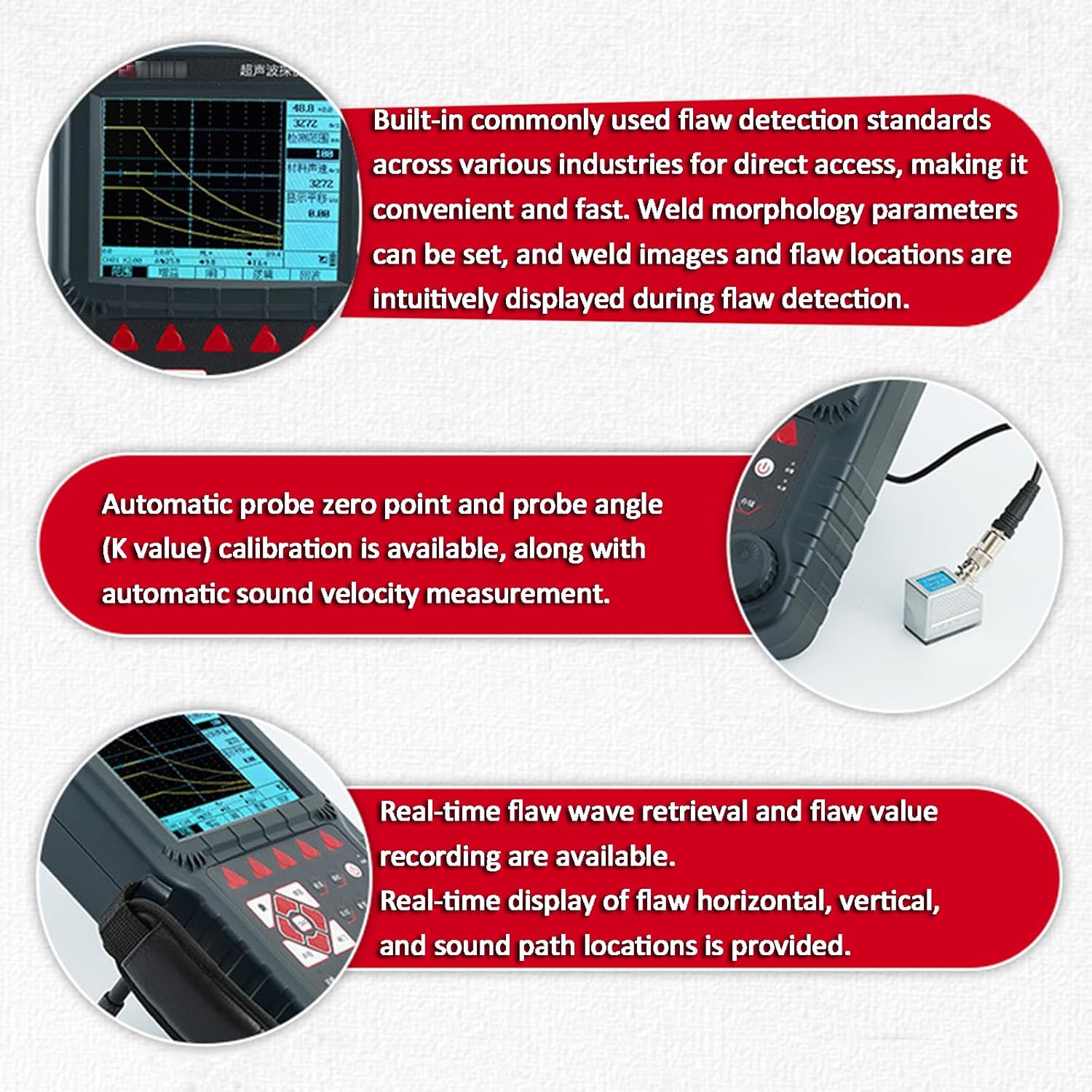

• 2. A user-friendly digital interface enables quick setup and efficient inspection.
• 3. Supports multiple probes, enabling diverse inspections of metals and welded structures.
• 4. The housing ensures reliable performance in industrial and construction applications.
• 5. The portable design allows for easy movement between different work environments, making it ideal for applications in machinery manufacturing, metrology verification, scientific experiments, mold processing, material testing, and delicate machining.
